This is a simple commandline tool to process images, and reduce their color-count, such that the resulting color-reduced image fits within a certain tile-based set of constraints.

In pretty much every old game console, background are drawn using tile-based graphics. This is a tool that can take in any bitmap image, and spit out a color-reduced version which is tiled-graphics compatible.

This page was generated from the readme file of the github repo.

# bmp2nam

This is a tool which can color-reduce bitmap images to make them tilemap-friendly.

NOTE: this tool is still quite experimental and incomplete, and has several quirky behaviors which need to be fixed.

Here is an example of how it works, taking in a very restrictive set of limitations such as the graphical limitations of the NES:

• using as input the following image:

• it spits out the following image:

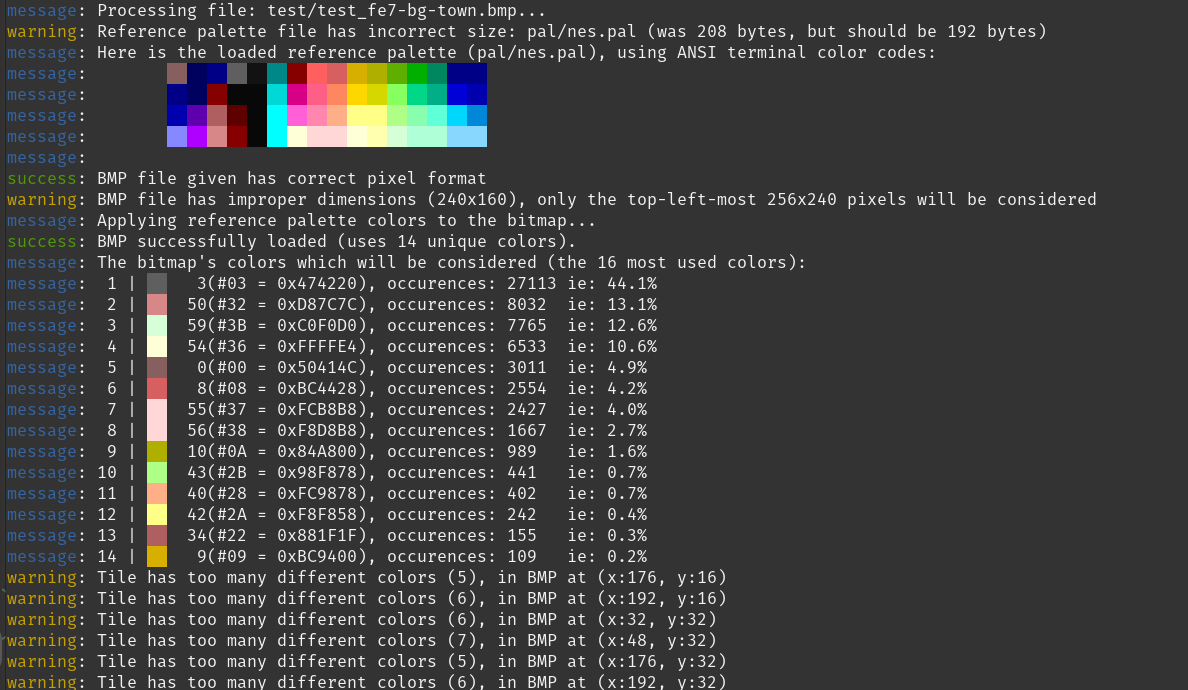

• and here is what the commandline output log looks like:

this tool was originally made for NES tile graphics in particular.

Here is a quick but pretty detailed summary of graphical limitations on the NES:

• 2 types of graphics: “sprites” (which can be freely placed anywhere onscreen or offscreen) and “tiles” (which must be positioned aligned to the background tile grid)
• tiles are 8x8 pixels in size and are stored in tilesets holding 256 tiles each.
• groups of tiles in a 2x2 tile layout form a 16x16 pixel “meta-tile”.
• 4 colors per meta-tile (i.e. a 16x16 square of background)
• there are 8 palettes (of 4 colors each): 4 palettes for sprites, and 4 palettes for tiles
• only 64 sprites (not meta-sprites) can be drawn on the screen (can be “solved” using flickering)
• only the 8 first sprites of any horizontal scanline will be drawn (can be “solved” using flickering)
• sprites can be 8x8 pixels in size (or 8x16 when a certain mode is enabled)
• 4 colors per sprite (first of which is the transparent color, so 3 usable colors really)
• groups of 8x8 sprites area often assembled into larger “meta-sprites”
